HIGHLAND STONE - MuLTIPIECE RETAINING WALL SYSTEM

6″ Retaining Wall Product Information

The Highland Stone® retaining wall system combines earthen tones, rich textures, varied contours and all the advantages of the rear-lip locator, making it a reliable and easy-to-install
alternative to natural stone walls. Use of Highland Stone units creates stunning retaining walls.
• Available in three face lengths
• Can be used for gravity walls up to 4 feet 6 inches high, including buried course, but excluding the cap*
• Original rear-lip locator
• Taller walls can be built using geosynthetic reinforcement or the Anchorplex™ retaining wall system when designed by a qualified engineer
• Minimum outside radius, measured on the top course to the front of the units: 4 feet**
• Minimum inside radius, measured on the base course to the front of the units: 8 feet.**

*This height assumes cores are filled with drainage aggregate, level backfill and clean,
compacted sand or gravel and no surcharge.
**May vary depending on the installation pattern.

Stretcher Units
Anchor_Hightland_StretcherLG

Large

Approximate Dimensions*
6″ x18″ x 12″

Approximate Weight*
78 lbs.

Coverage
0.75 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Anchor_Hightland_StretcherMD

Medium

Approximate Dimensions*
6″ x12″ x 12″

Approximate Weight*
59 lbs.

Coverage
0.50 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Anchor_Hightland_StretcherSM

Small

Approximate Dimensions*
6″ x 6″ x 12″

Approximate Weight*
30 lbs.

Coverage
0.25 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Accessory Units
Anchor_Hightland_AccXLCap

XL Cap

Approximate Dimensions*
3″ x18″ x 13″ (Front)
3″ x12″ x 13″ (Back)

Approximate Weight*
44 lbs.

Coverage
1.25 lin. ft.

Anchor_Hightland_AccStep

Step

Approximate Dimensions*
6″ x16″ x 12″ (Front)
6″ x16″ x 12″ (Back)

Approximate Weight*
89 lbs.



Anchor_Hightland_AccCorner

Corner/Column

Approximate Dimensions*
6″ x18″ x 9″ (Front)
6″ x 18″ x 9″ (Back)

Approximate Weight*
75 lbs.

Coverage
1.132 sq. ft.

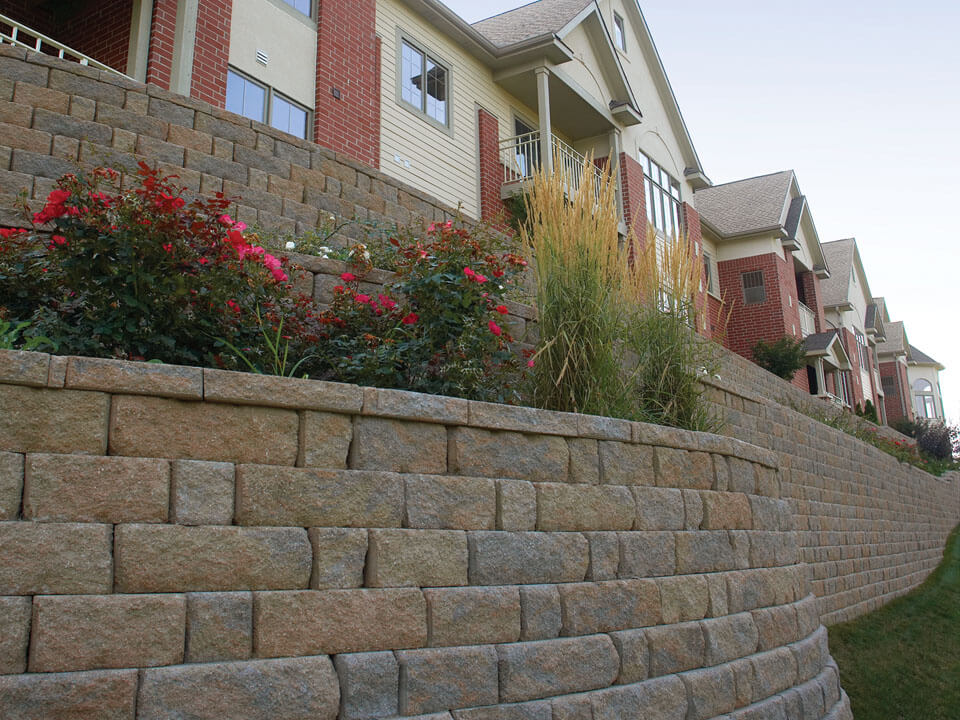

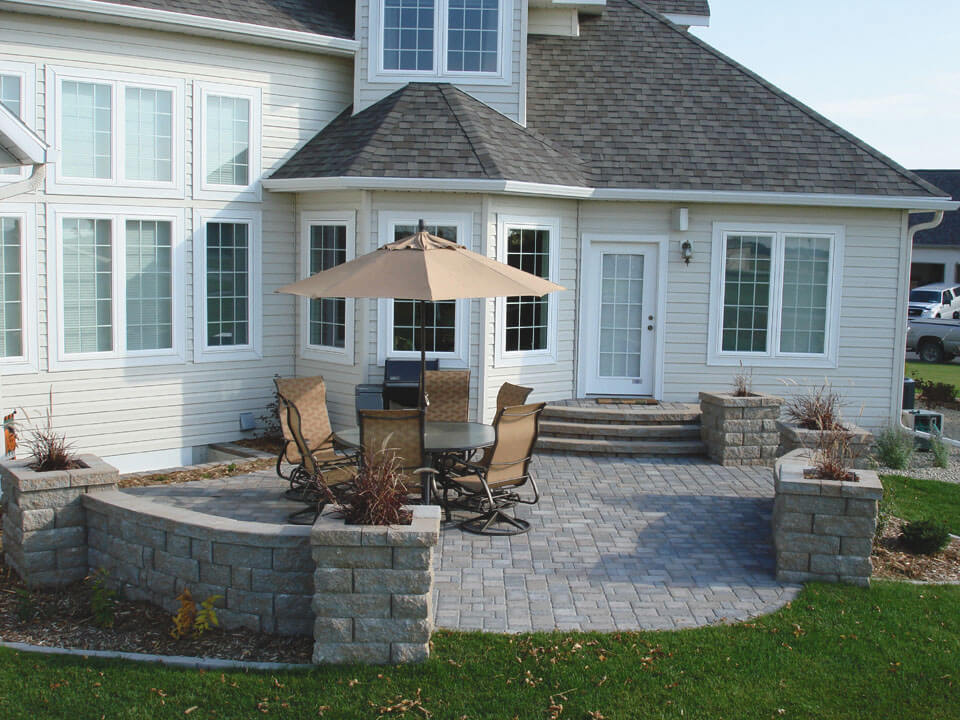

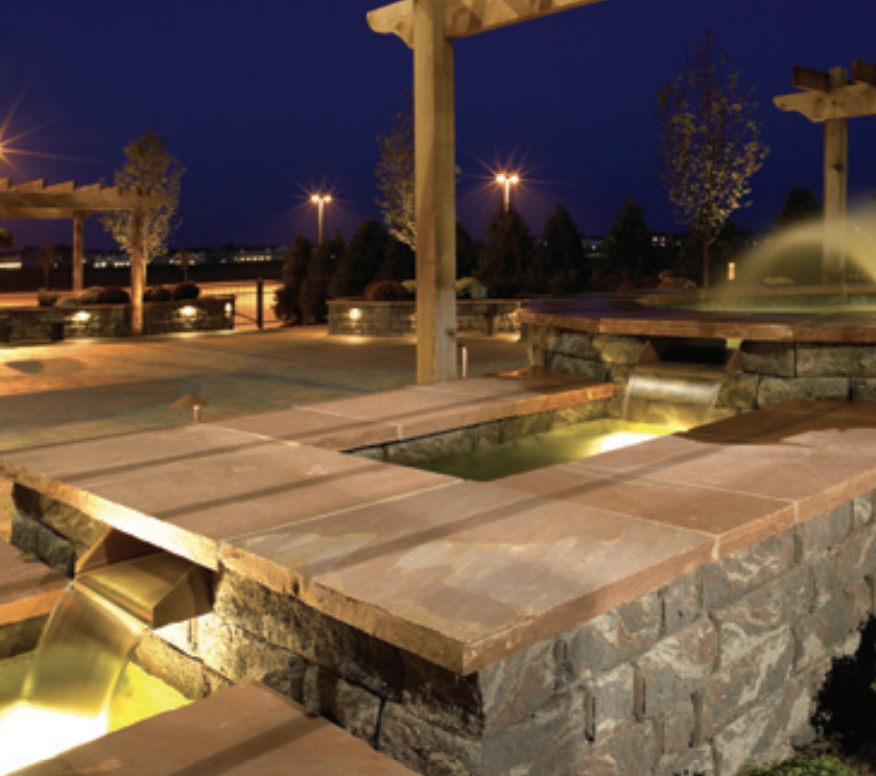

GALLERY
