Diamond® 9D RETAINING WALL SYSTEM

The versatile and easy-to-use design of Diamond® retaining wall systems has made them the preferred choice of contractors for decades. The Diamond® 9D retaining wall blocks have the advantages of an easy-to-handle light weight and a beautifully distressed appearance.

  • Gravity walls can be built up to 3 feet high, including buried course, but
    excluding the cap*
  • Taller walls can be built using geosynthetic reinforcement or the
    Anchorplex™ retaining wall system when designed by a qualified engineer
  • Min. outside radius, measured on the top course to the front of the units: 3ft
  • Min. inside radius, measured on the base course to the front of the units: 6t

*This height assumes cores are filled with drainage aggregate,
level backfill and clean, compacted sand or gravel and no surcharge

Stretcher

Approximate Dimensions*
6″ x17 3/4 x 9″

Approximate Weight*
52 lbs.

Coverage
0.74 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Adaptable Column/Corner
18-inch | 21-inch | 24-inch

Approximate Dimensions*
6″ x16 x 8″

Approximate Weight*
59 lbs.

Coverage
1 sq. ft.

Cap

Approximate Dimensions*
3″ x17 1/4 x 10 3/8″ (Front)
3″ x 12″ x 10 3/8″ (Back)

Approximate Weight*
34 lbs.

Coverage
1.22 in. ft.

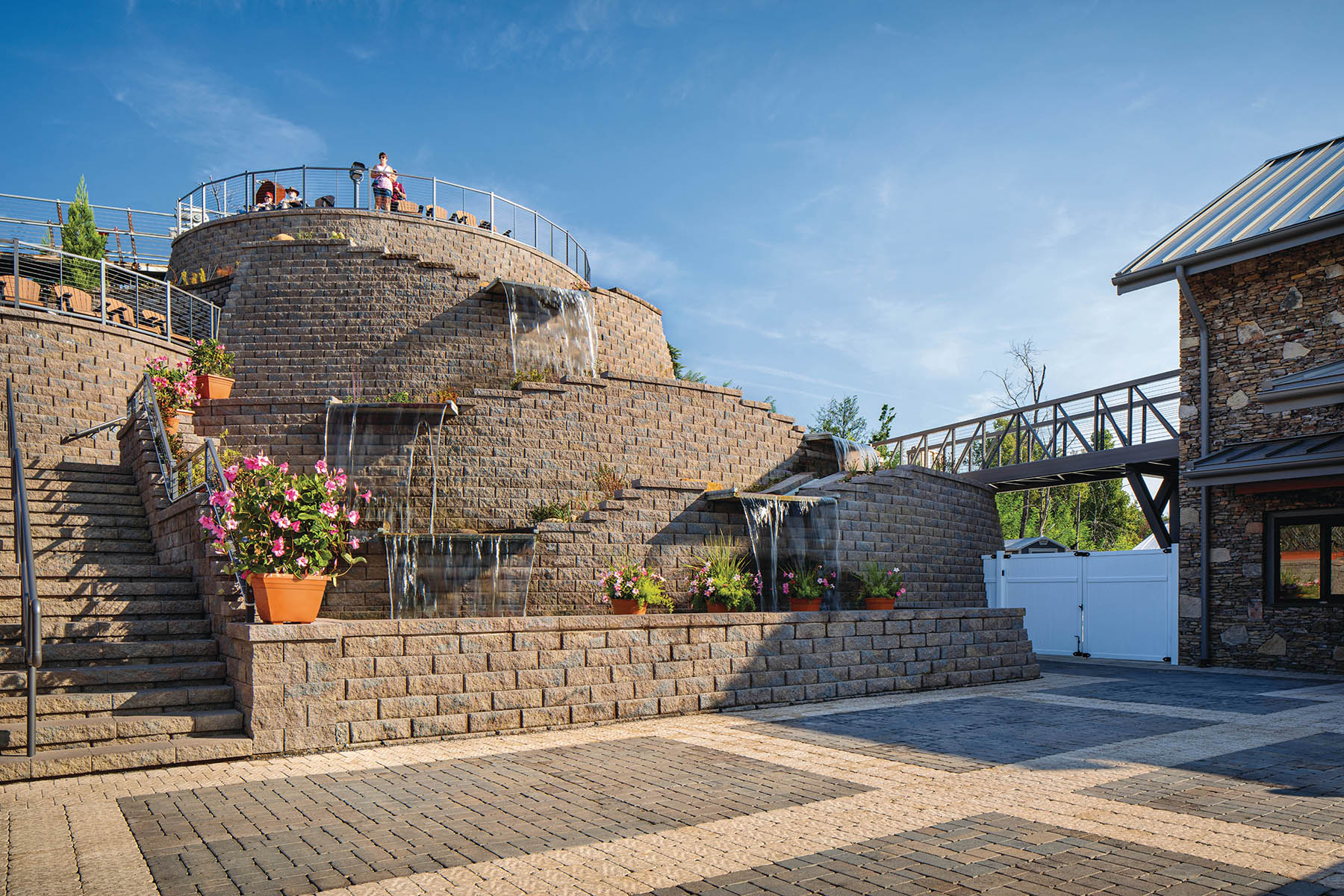

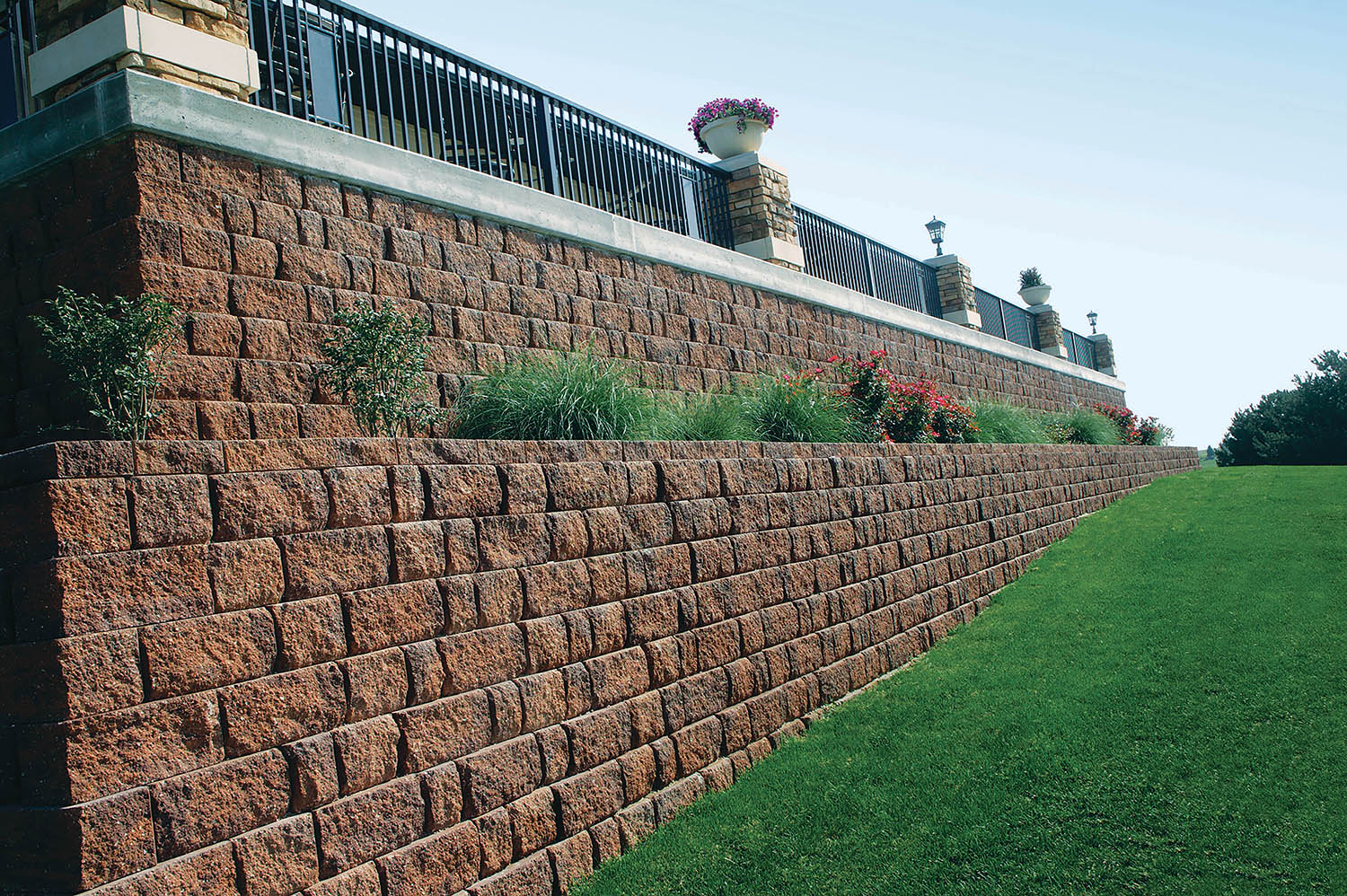

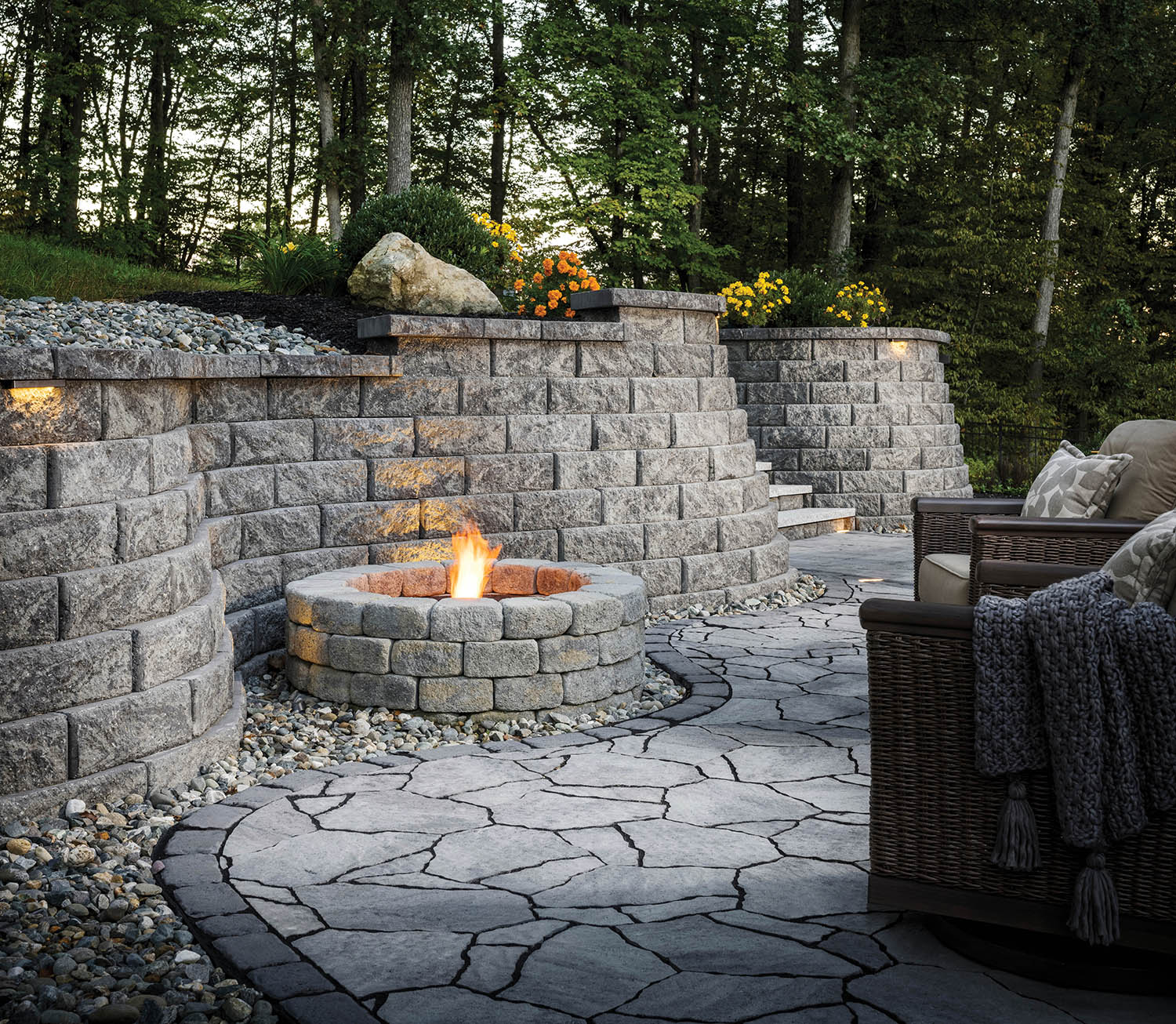

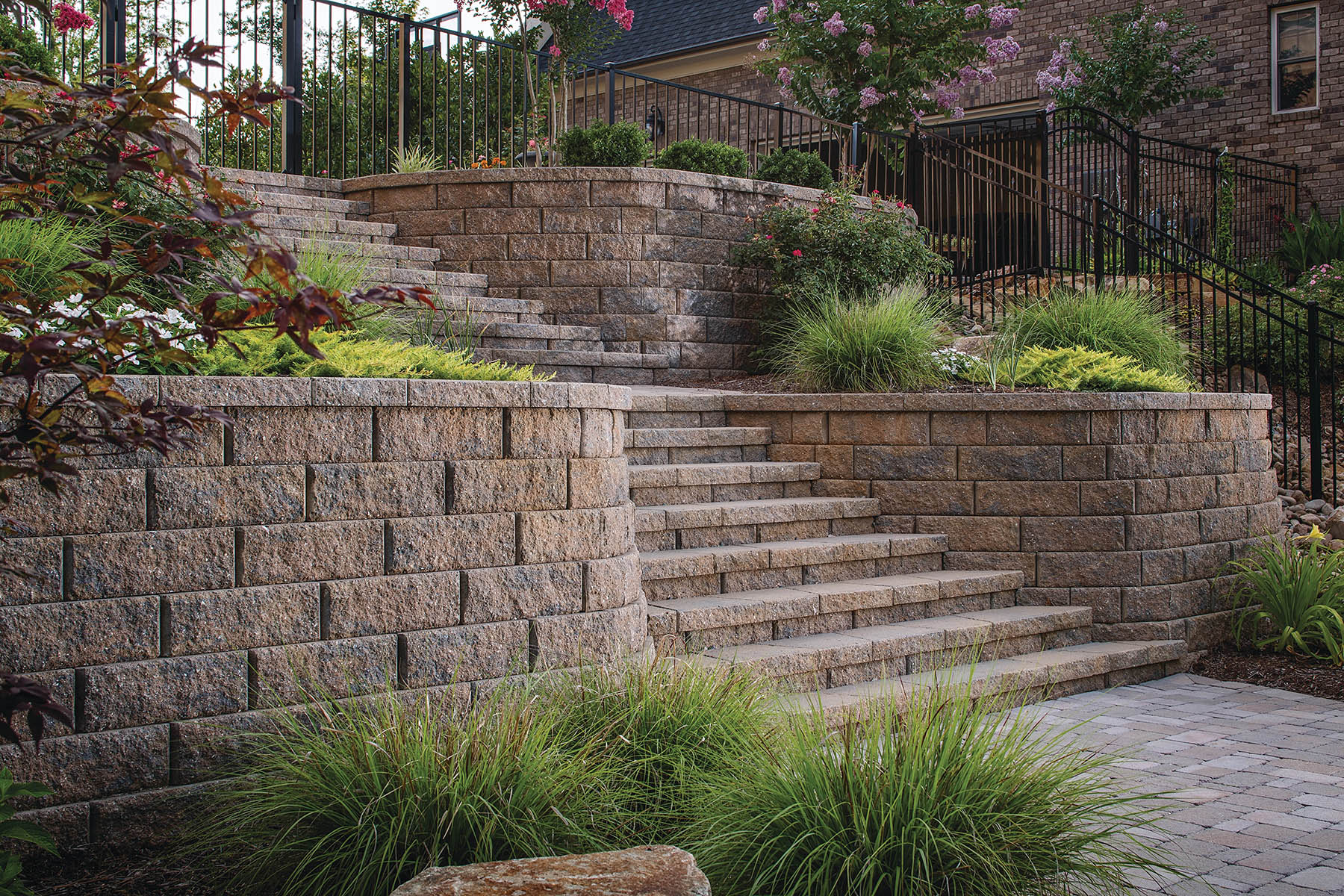

GALLERY
