Diamond® 9D Virtual Joint RETAINING WALL SYSTEM

The dependability of Diamond® retaining wall systems has made them the preferred choice for decades. This virtual-joint product has the advantages of an easy-to-handle weight and softened contours. It provides an appealing multipiece look with the installation speed of a single-piece system. The system is completed with a complementary cap unit.

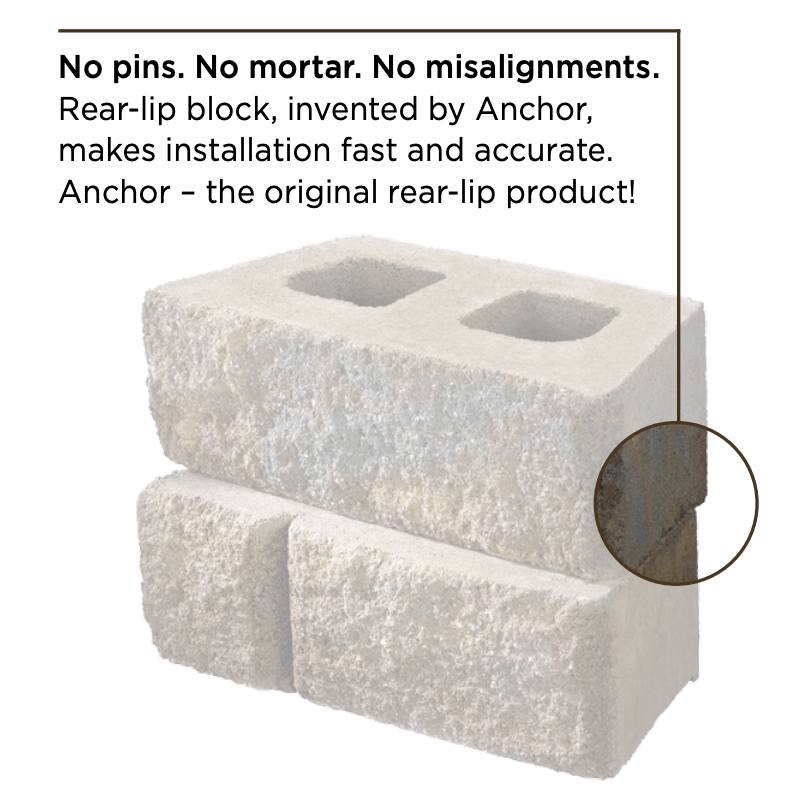

  • Rear-lip block makes installation fast and accurate
  • Gravity walls can be built up to 3 feet high, including buried course, but excluding the cap*
  • Taller walls can be built using geosynthetic reinforcement or the Anchorplex® system when designed by a qualified engineer
  • Minimum outside radius, measured on the top course to the front of the units: 3 feet**
  • Minimum inside radius, measured on the base course to the front of the units: 6 feet**
  • Setback/System Batter: 11 ⁄8”/10.6°
*This height assumes cores are filled with drainage aggregate, level backfill and clean, compacted sand or gravel and no surcharge. **May vary depending on the installation pattern./em>
Anchor_9DVirtual_Stretcher

Stretcher

Approximate Dimensions*
6″ x17 3/4 x 9″

Approximate Weight*
52 lbs.

Coverage
0.74 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Anchor_9DVirtual_LeftSide

Left Side Virtual Joint

Approximate Dimensions*
6″ x17 3/4 x 9″

Approximate Weight*
52 lbs.

Coverage
0.74 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Anchor_9DVirtual_RightSide

Right Side Virtual Joint

Approximate Dimensions*
6″ x17 3/4 x 9″

Approximate Weight*
52 lbs.

Coverage
0.74 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

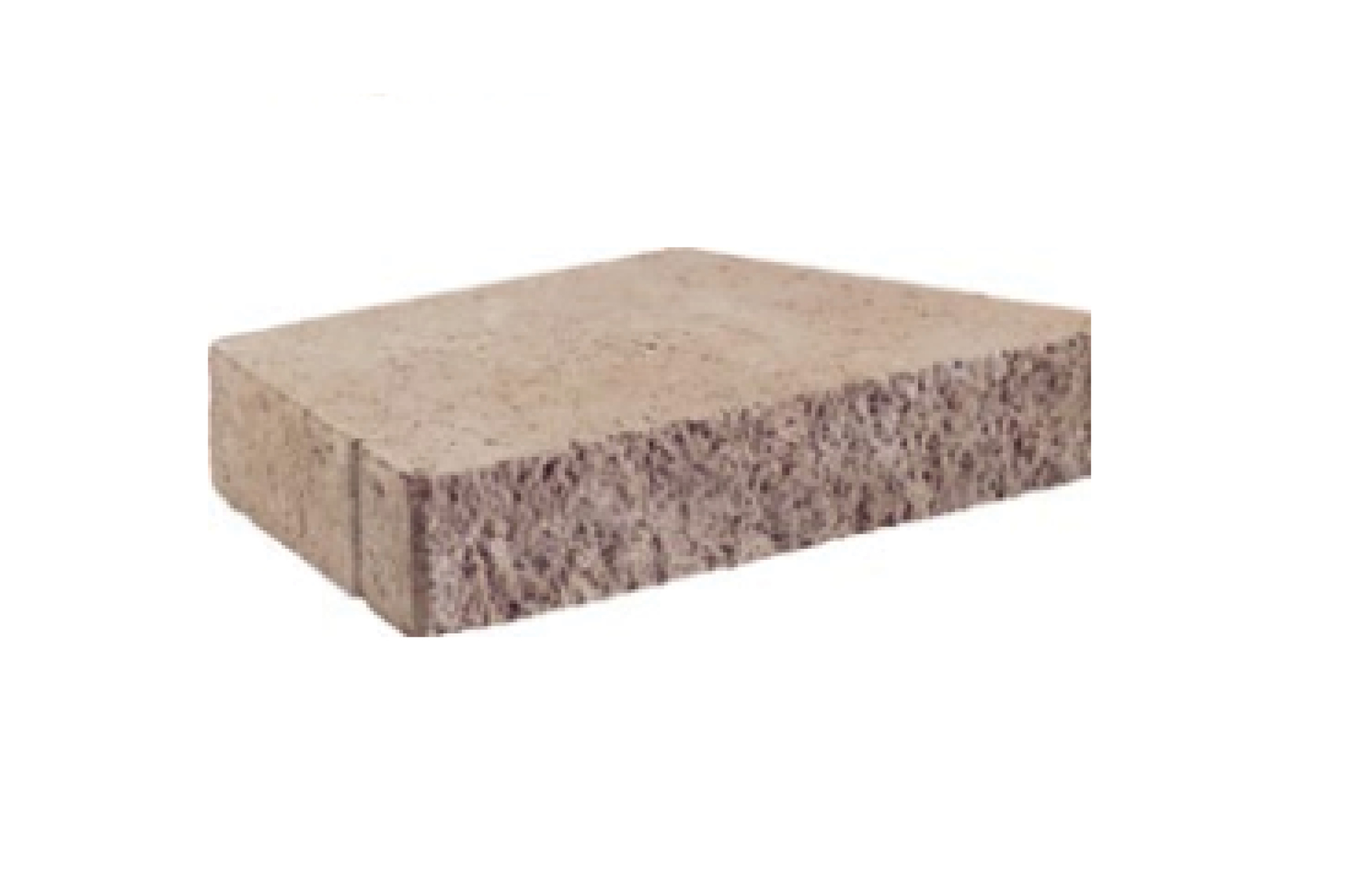

Cap

Approximate Dimensions*
3″ x17 1/4 x 10 3/8″ (Front)
3″ x 12″ x 10 3/8″ (Back)

Approximate Weight*
34 lbs.

Coverage
1.22 in. ft.

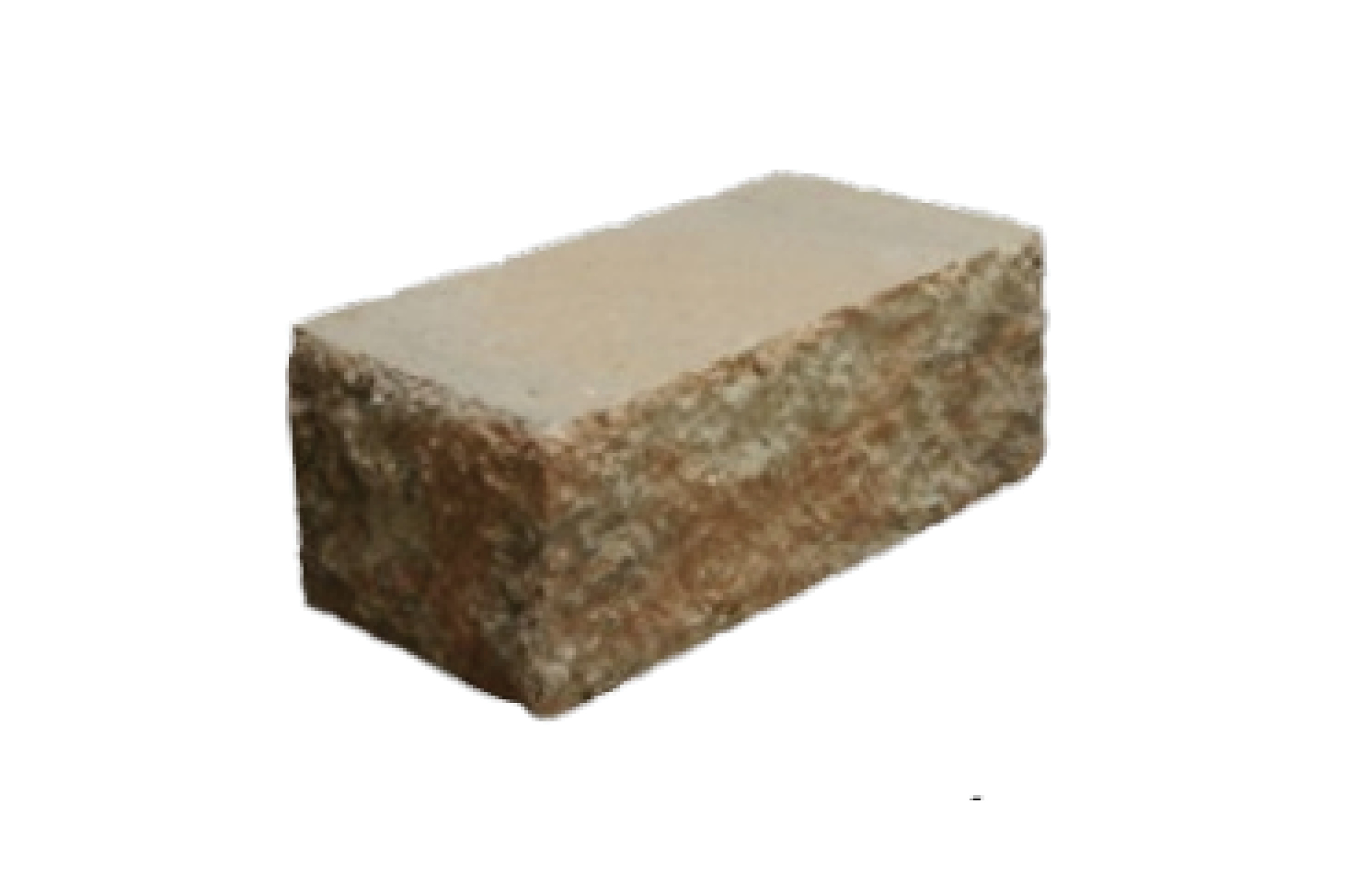

Adaptable Column/Corner
18-inch | 21-inch | 24-inch

Approximate Dimensions*
6″ x16 x 8″

Approximate Weight*
59 lbs.

Coverage
1 sq. ft.
