Diamond® 10D RETAINING WALL SYSTEM

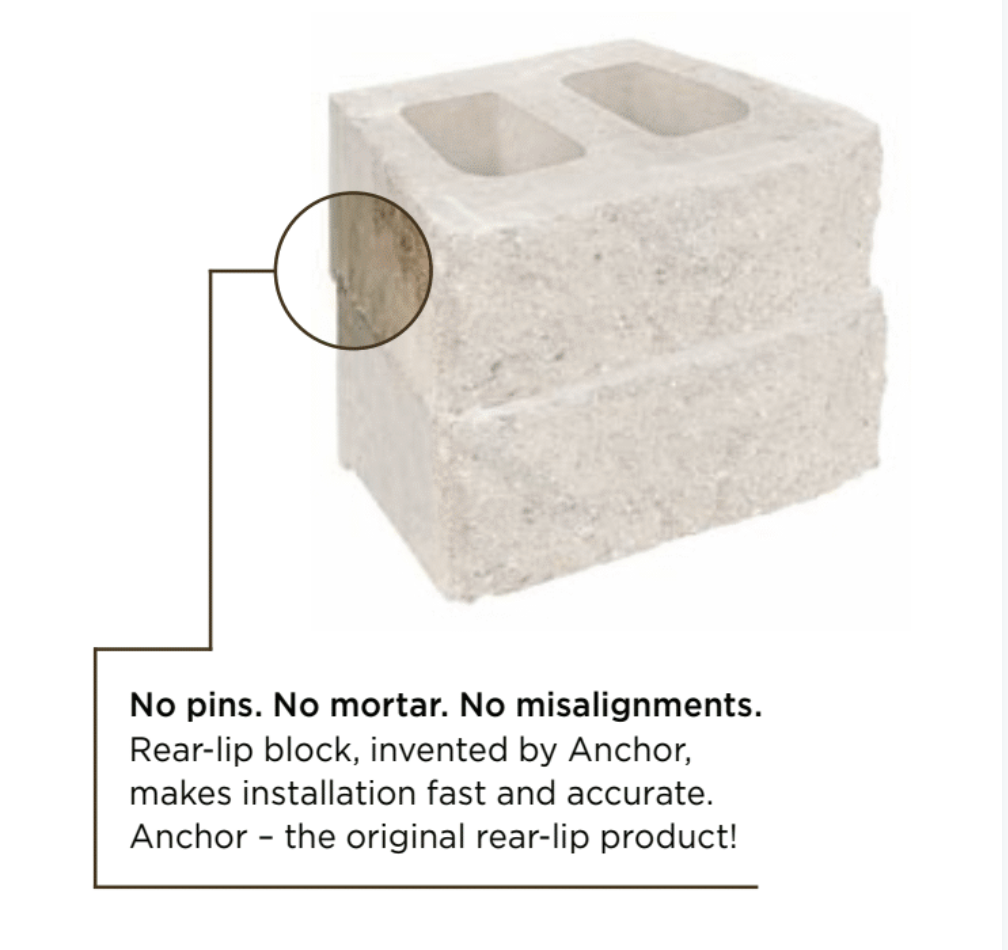

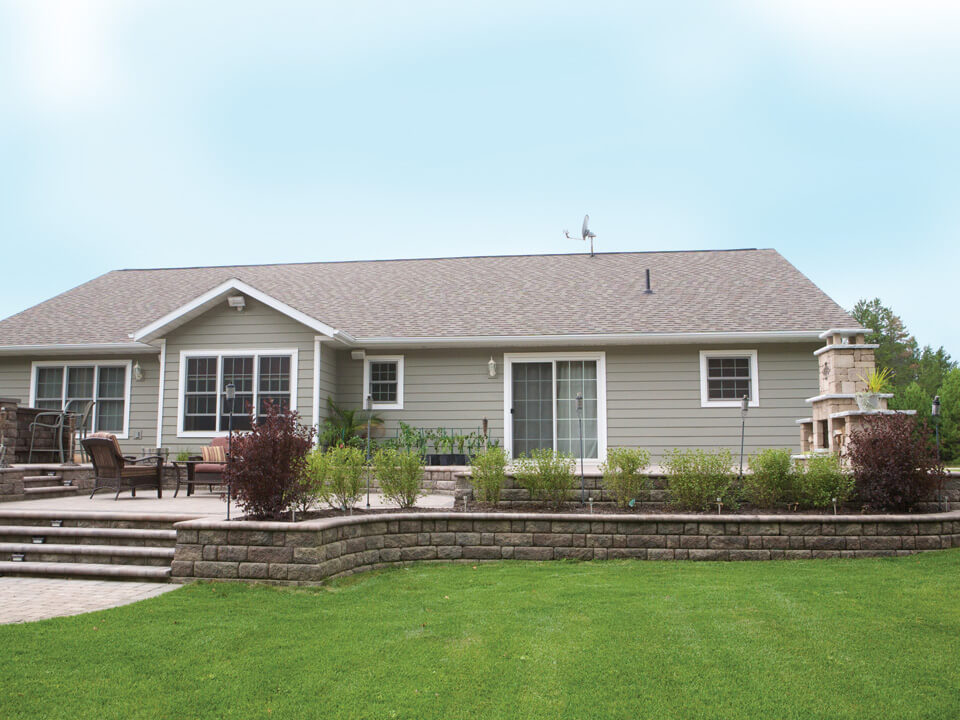

The dependability of the Diamond® retaining wall system has made it the preferred choice of contractors for decades. With an improved, distressed face style, the Diamond® 10D retaining wall has the dependability of the original Diamond product, but in a lighter weight, so it’s even easier to use. The rear-lip block provides uniform installation and reduces labor costs. The system is completed with a complementary cap unit.
  • Build gravity walls up to 3 feet 6 inches high, including buried course, but excluding the cap*
  • Taller walls can be built using geosynthetic reinforcement or the Anchorplex™ retaining wall system when designed by a qualified engineer
  • Minimum outside radius, measured on the top course to the front of the units: 3 feet
  • Minimum inside radius, measured on the base course to the front of the units: 6 feet
*This height assumes cores are filled with drainage aggregate, level backfill and clean, compacted sand or gravel and no surcharge.
Anchor_10D_Stretcher

Stretcher

Approximate Dimensions*
6″ x17 3/4 x 10″

Approximate Weight*
52 lbs.

Coverage
0.74 sq. ft.

Setback/System Batter
1 1/8″ / 10.6

Anchor_10D_Corner

Corner/Column

Approximate Dimensions*
6″ x18 x 9″

Approximate Weight*
75 lbs.

Coverage
1.13 sq. ft.

Anchor_10D_Shorcut

ShortCut* Cap

Approximate Dimensions*
3″ x 8  x 13″ (Front)
3″ x 7″ x 13″ (Back)

Approximate Weight*
22.5 lbs.

Coverage
0.63 lin. ft.

Anchor_10D_Torpedo

Torpedo* Base Block

Approximate Dimensions*
4″ x15 3/4x 11″

Approximate Weight*
47 lbs.

Coverage
1.31 lin ft.
